Dwdm Channels : 96 Channels Dwdm Mux Demux Dual Fibre Aawg Lc Upc Fs Australia : Cwdm and dwdm wavelength comparison.. Dwdm channels are evenly spaced in range from 1260 nm to 1675 nm and categorized in bands and defined by: Dense wavelength division multiplexing works on the same principle as cwdm, but in addition to the increased channel capacity, it can also be amplified to support much longer distances. Cwdm has a wider spacing than dwdm. This small channel spacing allows to transmit simultaneously more information. The following figure shows how the dwdm channels fit into the wavelength spectrum compared to cwdm channels.
200 ghz, 300 ghz, 400 ghz, etc. The following figure shows how the dwdm channels fit into the wavelength spectrum compared to cwdm channels. It supports much more wavelengths than that of cwdm mux demux. Optical monitors, therefore, need the. Dwdm channels are evenly spaced in range from 1260 nm to 1675 nm and categorized in bands and defined by:

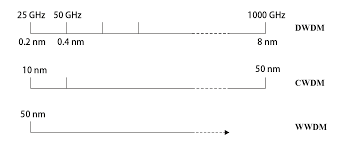

Dwdm Vs Cwdm What Is The Difference A Short Overview from www.cbo-it.de Multiplexing up to 40 channels on fiber pair, dwdm mux demux can maximize the use of the fiber. Consider a highway analogy where one fiber can be thought of as a multilane It supports much more wavelengths than that of cwdm mux demux. Cwdm has a wider spacing than dwdm. Dwdm can carry 40, 80, or up to 160 wavelengths with a narrower spacing of 0.8/0.4nm (100 ghz/50 ghz grid). Dwdm can have 100ghz (0.8 nm) wavelength spacing for 40 channels, or 50ghz (0.4 nm) spacing for 80 channels. You can use our universal transceiver in devices from nearly 200 vendors. A dense wavelength division multiplexing (dwdm) solution takes wdm to the next level by decreasing channel spacing to 0.8nm or less and shrinking the operational wavelength range.
Each channel contains a tdm (time division multiplex) signal.
The complete channel grid for 100ghz dwdm is shown below. Passive cwdm transports up to 18 wavelengths (from 1470nm to 1610nm) with a channel spacing of 20nm. It is able to use with colored transceivers for various applications such as 1g/10g/25g/40g/100g ethernet, sdh/sonet,4/8/16/32g fibre channel, otu3 and otu4, etc. And each of up to 80 channels can carry 2.5 gbps for a total of 200 billion bits per second by the optical. Download itu grid in pdf format. Interoperable w/ any dwdm, otn infrastructure. Cwdm has a wider spacing than dwdm. Dwdm, supports up to 80 simultaneous wavelength channels, with each of the channels only 0.8nm apart. Dwdm is for systems with more than eight active wavelengths per fiber. As demonstrated through the figure beside, cwdm occupies the following itu channels: Dense wave division multiplexing (dwdm) itu grid: Itu g694.1 defines the standard dwdm wavelength range as 1528.77 to 1563.86nm. The world's tv channels at once or about half a million movies at the same time.
For distances between 40 and 70 kilometers, cwdm tends to be limited to supporting eight channels. Dense wavelength division multiplexing (dwdm) is wavelength division multiplexing (wdm) with typical channel spacing of 100 ghz for 40 channels and 50 ghz for 80 channels. While passive dwdm can accommodate 40, 80 or up to 160 wavelengths with a narrower wavelength spacing of 0.8nm, 0.4nm or even 0.2nm. For 200ghz spacing use either odd or even numbered dwdm channels. Itu g.694.1 standard dwdm region is from 1528.77nm to 1563.86nm that resides mostly within the c band.
What Is The Difference Of Cwdm Dwdm And Ccwdm Router Switch Blog from blog.router-switch.com The following figure shows how the dwdm channels fit into the wavelength spectrum compared to cwdm channels. As demonstrated through the figure beside, cwdm occupies the following itu channels: Economical rack space & low power consumption creates cost effective, scalable networks. Optical monitors, therefore, need the. Its wavelengths are from 1525nm to 1565nm (c band) and 1570nm to 1610nm (l band). It is able to transport up to 18 cwdm wavelengths with a channel spacing of 20nm in the spectrum grid from 1271nm to 1611nm. Channel plans vary, but a typical dwdm system would use 40 channels at 100 ghz spacing or 80 channels with 50 ghz spacing. Of course, the number of channels can double when using a channel spacing of 50 ghz.
Its wavelengths are from 1525nm to 1565nm (c band) and 1570nm to 1610nm (l band).
Cwdm and dwdm wavelength comparison. Dense wavelength division multiplexing (dwdm) itu grid: The dwdm channel spacing is 0.8/0.4 nm (100 ghz/50 ghz grid). Itu g694.1 defines the standard dwdm wavelength range as 1528.77 to 1563.86nm. Dwdm channels are evenly spaced in range from 1260 nm to 1675 nm and categorized in bands and defined by: The number of channels is fewer than in dwdm but more than in standard wdm. Prolabs dense wave division multiplexing (dwdm) itu grid dwdm itu channels consist of 100ghz (0.8 nm) wavelength spacing for 40 channels or 50ghz (0.4 nm) spacing for 80 channels. Interoperable w/ any dwdm, otn infrastructure. It is able to transport up to 18 cwdm wavelengths with a channel spacing of 20nm in the spectrum grid from 1271nm to 1611nm. Dwdm can have 100ghz (0.8 nm) wavelength spacing for 40 channels, or 50ghz (0.4 nm) spacing for 80 channels. Fs dwdm transceiver modules quick view It supports much more wavelengths than that of cwdm mux demux. The following figure shows how the dwdm channels fit into the wavelength spectrum compared to cwdm channels.
Dense wavelength division multiplexing works on the same principle as cwdm, but in addition to the increased channel capacity, it can also be amplified to support much longer distances. Economical rack space & low power consumption creates cost effective, scalable networks. Cwdm and dwdm wavelength comparison. Dwdm can have 100ghz (0.8 nm) wavelength spacing for 40 channels, or 50ghz (0.4 nm) spacing for 80 channels. The world's tv channels at once or about half a million movies at the same time.

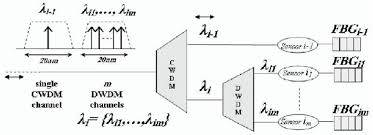

Lgx Dwdm Multiplexer Omnilight 8 Channel Dwdm Mux from www.omnitron-systems.com Fs dwdm transceiver modules quick view Dense wavelength division multiplexing works on the same principle as cwdm, but in addition to the increased channel capacity, it can also be amplified to support much longer distances. 34 years of quality & value. The following figure shows how the dwdm channels fit into the wavelength spectrum compared to cwdm channels. Dense wavelength division multiplexing (dwdm) itu grid. About 40 channels with 100 ghz spacing (100 ghz × 40 ch. Dwdm is defined in terms of frequencies. By mapping dwdm channels inside the cwdm wavelengths spectrum as demonstrated below, higher data transport capacity on the same fiber optic cable is possible without any requirement for changing the existing fiber infrastructure between the network sites.
34 years of quality & value.

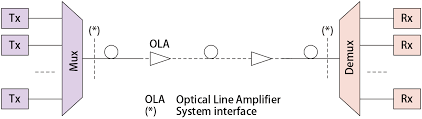

You can use our universal transceiver in devices from nearly 200 vendors. It integrates mux demux, edfa, dcm and etc to achieve high capacity transmission. For 200ghz spacing use either odd or even numbered dwdm channels. Dense wavelength division multiplexing (dwdm) itu grid. Dwdm can carry 40, 80, or up to 160 wavelengths with a narrower spacing of 0.8/0.4nm (100 ghz/50 ghz grid). Fs dwdm transceiver modules quick view Dense wavelength division multiplexing (dwdm) itu grid: If you have any questions please contact us at. It is able to transport up to 18 cwdm wavelengths with a channel spacing of 20nm in the spectrum grid from 1271nm to 1611nm. Dwdm's tighter wavelength spacing fits more channels onto a single fiber, but costs more to implement and operate. The world's tv channels at once or about half a million movies at the same time. Its wavelengths are from 1525nm to 1565nm (c band) and 1570nm to 1610nm (l band). Each channel contains a tdm (time division multiplex) signal.
